Material |
Size (in mm) |
Sch. & Swg. |
Specification |
---|---|---|---|
ASTM A335 P9 Seamless Pipe |
15 NB to 300 NB |
Sch. 40s To Sch. XXs (heavier on request) |
ASTM A 335, ASME SA 335 Seamless |
Alloy Steel Pipe in Grade |
ASTM A335 P1/ P2/ P5/ P5b/ P5c/ P9/ P11/ P12/ P15/ P21/ P22/ P23/ P24/ P36/ P91/ P92/ P122/ P911 (with IBR Test Certificate) |
In Length of |
Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths |
Value Added Service |
Draw & Expansion as per required Size & Length Heat Treatment, Bending, Annealed, Machining Etc. |
Test Certificate |
Manufacturer Test Certificate IBR Test Certificate Laboratory Test Certificate from Govt. Approved Lab. & Under Third Party Inspection |
ASTM A335/ASME SA335 P9 Alloy Steel Seamless Pipe Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
ASTM A335/ASME SA335 P9 Alloy Steel Seamless Pipe End | Plain End, Beveled End, Threaded |
ASTM A335/ASME SA335 P9 Alloy Steel Seamless Pipe Type | Seamless / ERW / Welded / Fabricated / CDW |
ASTM A335/ASME SA335 P9 Alloy Steel Seamless Pipe End Protection | Plastic Caps |
ASTM A335/ASME SA335 P9 Alloy Steel Seamless Pipe Outside Coating | Black Painting, Anti-Corrosion Oil, Galvanised Finish, Finish as per customer Requirements |
Inspection, Test Certificate/ Reports | Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate |
Alloy Steel Pipes Specifications & Grades:
We are the Approved Suppliers and wanders’ of Indian Oil , BHEL and Saudi Aramco since one Decade
10,000 sqft, Navi Mumbai, Kalamboli
Ready Stock Available | |
---|---|
Alloy Steel P9 Seamless Pipes | 100 ton |
This specification covers seamless ferritic alloy-steel pipe for high-temperature service. The pipe shall be suitable for bending, flanging (vanstoning), and similar forming operations, and for fusion welding. Grade P2 and P12 steel pipes shall be made by coarse-grain melting practice. The steel material shall conform to chemical composition, tensile property, and hardness requirements. Each length of pipe shall be subjected to the hydrostatic test. Also, each pipe shall be examined by a non-destructive examination method in accordance to the required practices. The range of pipe sizes that may be examined by each method shall be subjected to the limitations in the scope of the respective practices. The different mechanical test requirements for pipes, namely, transverse or longitudinal tension test, flattening test, and hardness or bend test are presented.
Trade Name |
Grade |
UNS # |
Pipe |
Forged / Bored Pipe * |
---|---|---|---|---|
9 Chrome |
P9 |
S50400 |
A335 / SA335 |
A369 / SA369 |

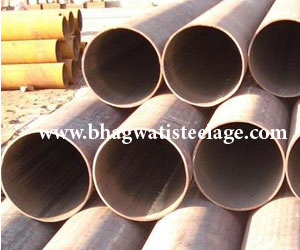

The material P9 Pipe is especially suited for steam boiler, boiler parts, boiler drum, pressure vessel for the apparatus engineering and similar purposes. It can be used in permanent operation with wall temperatures up to about 590 °C ‘1094 °F+.
Steel Pipes Online is a premier worldwide supplier for all your Chrome Moly Alloy A335 / SA335 Seamless Piping needs. These ASTM S/A 335 Chrome Moly Grade P9 Pipes may be furnished bare or coated and with capped ends.
We are stockholder & suppliers of High pressure P9 Seamless pipes, mostly used in Power Plants. The products are supplied with 3.1 test certificates, according to EN 10204. Certification according to 3.2 can be agreed at the time of order.
Pipe/ Tube Type | NB Sizes | Sch 5 | Sch 10 | Sch 40 | Sch 80 | Sch 160 |
---|---|---|---|---|---|---|
Alloy Steel P9 Seamless Pipes | 1/2 |
|||||
Alloy Steel P9 Seamless Pipes | 3/4 |
|||||
Alloy Steel P9 Seamless Pipes | 1 |
|||||
Alloy Steel P9 Seamless Pipes | 1.25 |
|||||
Alloy Steel P9 Seamless Pipes | 1.5 |
|||||
Alloy Steel P9 Seamless Pipes | 2 |
|||||
Alloy Steel P9 Seamless Pipes | 2.5 |
|||||
Alloy Steel P9 Seamless Pipes | 3 |
|||||
Alloy Steel P9 Seamless Pipes | 3.5 |
|||||
Alloy Steel P9 Seamless Pipes | 4 |
|||||
Alloy Steel P9 Seamless Pipes | 5 |
|||||
Alloy Steel P9 Seamless Pipes | 6 |
|||||
Alloy Steel P9 Seamless Pipes | 8 |
|||||
Alloy Steel P9 Seamless Pipes | 10 |
|||||
Alloy Steel P9 Seamless Pipes | 12 |
|||||
Alloy Steel P9 Seamless Pipes | 14 |
|||||
Alloy Steel P9 Seamless Pipes | 16 |
|||||
Alloy Steel P9 Seamless Pipes | 18 |
|||||
Alloy Steel P9 Seamless Pipes | 20 |
|||||
Alloy Steel P9 Seamless Pipes | 22 |
|||||
Alloy Steel P9 Seamless Pipes | 24 |
Grade |
C |
Mn |
P |
S |
Si |
Cr |
Mo |
---|---|---|---|---|---|---|---|
P9 |
0.15 max |
0.30-0.60 |
0.025 |
0.025 |
0.25-1.00 |
8.00-10.00 |
0.90-1.10 |
Mechanical Properties |
|||||
Grade |
Tensile strength(MPa) |
Yield strength(MPa) |
Elongation(%) |
Impact energy(J) |
Hardness |
---|---|---|---|---|---|
P9 |
≥ 415 |
≥ 205 |
≥ 22 |
≥ 35 |
≤ 163HB |
NPS |
OD Tolerance |
NPS |
WT Tolerance |
---|---|---|---|
1/8″ ≤ NPS ≤ 1 1/2″ |
+/- 0.4 |
1/8″ ≤ NPS ≤ 2 1/2″ , All T/D ratios. |
+20%, -12.5% |
1 1/2 < NPS ≤ 4″ |
+/- 0.79 |
NPS ≥ 2 1/2″ , T/D ≤ 5% |
+22.5%, -12.5% |
4″ < NPS ≤ 8″ |
+1.59, -0.79 |
NPS ≥ 2 1/2″ , T/D > 5% |
+15%, -12.5% |
8″ < NPS ≤ 12″ |
+2.38, -0.79 |
(T= Specified Wall Thickness; D = Specified Outside Diameter) |
Other types of ASTM A335 P9 / ASME SA335 P9 Alloy Steel Seamless Pipe |
||
---|---|---|
|
|
|
SAE-J356 | Welded Flash Controlled Low Carbon Steel Tubing Normalized for Bending. Double Flaring and Beading. Covers normalized electric resistance welded tube ID flash-controlled .005" to .010" manipulative quality. |
---|---|
SAE-J524 | Seamless Low Carbon Steel Tubing Annealed for Bending and Flaring. Covers cold drawn seamless JIC hydraulic line tubing. |
SAE-J525 | Welded and Drawn Low Carbon Steel Tubing Annealed for Bending and Flaring. Covers welded and drawn JIC hydraulic line tubing. |
SAE-J526 | Welded Low Carbon Steel Tubing. Covers annealed welded tube with ID flash-in for general automotive applications. |
SAE-J527 | Brazed Double Wall Carbon Steel Tubing. Covers copper brazed double wall low carbon steel tube intended for general automotive applications and other similar uses. Suitable for bending, forming and double flaring. |
SAE-J529 | Fuel Injection Tubing. Covers low carbon steel tube specially manufactured for high pressure fuel injection lines for diesel engines. |
AMS-5050 | Seamless Annealed Low Carbon Steel Tube. Covers cold drawn seamless JIC hydraulic line steel tubing for aircraft applications. |
AMS-5062 | Seamless Low Carbon Steel Tube. Covers cold finished or hot finished seamless low carbon mechanical steel tube. |
AMS-6360 | Seamless SAE 4130 Alloy Steel Tubing. Covers aircraft quality 4130 tube in condition N temper. Similar to MIL-T-6736 specification. |
AMS-6365 | Seamless SAE 4135 Alloy Steel Tubing. Covers aircraft quality 4135 tube in condition N temper. Similar to MIL-T-6735 specification. |
AMS-6371 | Seamless SAE 4130 Alloy Steel Mechanical Tubing. Covers electric furnace grade magnaflux quality 4130 aircraft tube, either hot finished or cold finished, hardenable. |
AMS-6372 | Seamless SAE 4135 Alloy Steel Mechanical Tubing. Covers electric furnace grade magnaflux quality 4135 aircraft tube, either hot finished or cold finished, hardenable. |
AMS-6381 | Seamless SAE 4140 Alloy Steel Mechanical Tubing. Covers electric furnace grade magnaflux quality 4140 aircraft tube, either hot finished or cold finished, hardenable. |
AMS-6415 | Seamless SAF 4340 Alloy Steel Mechanical Tubing. Covers electric furnace grade magnaflux quality 4340 aircraft tube, either hot finished or cold finished, hardenable. |
Tubular Products |
---|
ASTM A519 Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing 4130 DIN 17175 Seamless Tubes of Heat-resistant Steels GOST 8732-78 Seamless Hot-worked Steel Pipes GOST 8734-75 Seamless cold-formed steel pipes GOST 550-75 Seamless steel tubes for petroleum processing and the petrochemical industry TU 14-3R-55-2001 Seamless steel pipes for steam boilers and pipelines TU 14-3-460-2003 Seamless steel tubes for boilers and pipelines GOST 9567-75 Precision steel pipes |
ASTM A335/ASME SA335 P9 Alloy Steel Pipe Available Surface Finish |
---|
Surface Finishes: Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.
End Finishes: Beveled, Square Cut, Threaded & Coupled.
Our Specialization in ASTM A335/ASME SA335 P9 Alloy Steel Pipe |
---|
Steel Pipes Online is Specialize in supply of ASTM A335 P9 Pipe /ASME SA335 P9 Alloy Steel Pipe that your company needs for use in the oil or gas or power plant.
Our Specialization comes after supplying ASTM A335 Pipe / ASME SA335 P9 Pipe to 300+ companies from Oil & Gas Industry, Petrochemical, Offshore & Onshore Projects, Rigs, Chemical & Fertilizer companies in more than 40 countries
Outside Diameter & Tolerance |
---|
ASTM A450 |
Hot rolled |
Outside Diameter, mm |
Tolerance, mm |
OD≤101.6 |
+0.4/-0.8 |
||
101.6<OD≤190.5 |
+0.4/-1.2 |
||
190.5<OD≤228.6 |
+0.4/-1.6 |
||
Cold Drawn |
Outside Diameter, mm |
Tolerance, mm |
|
OD<25.4 |
±0.10 |
||
25.4≤OD≤38.1 |
±0.15 |
||
38.1<OD<50.8 |
±0.20 |
||
50.8≤OD<63.5 |
±0.25 |
||
63.5≤OD<76.2 |
±0.30 |
||
76.2≤OD≤101.6 |
±0.38 |
||
101.6<OD≤190.5 |
+0.38/-0.64 |
||
190.5<OD≤228.6 |
+0.38/-1.14 |
||
ASTM A530 & ASTM A335
|
NPS |
Outside Diameter, inch |
Tolerance, mm |
1/8≤OD≤1-1/2 |
±0.40 |
||
1-1/2<OD≤4 |
±0.79 |
||
4<OD≤8 |
+1.59/-0.79 |
||
8<OD≤12 |
+2.38/-0.79 |
||
OD>12 |
±1% |
Wall thickness & Tolerance |
---|
ASTM A335
|
Hot rolled
|
Outside Diameter, mm |
Tolerance, % |
OD≤101.6, WT≤2.4 |
+40/-0 |
||
OD≤101.6, 2.4<WT≤3.8 |
+35/-0 |
||
OD≤101.6, 3.8<WT≤4.6 |
+33/-0 |
||
OD≤101.6, WT>4.6 |
+28/-0 |
||
OD>101.6, 2.4<WT≤3.8 |
+35/-0 |
||
OD>101.6, 3.8<WT≤4.6 |
+33/-0 |
||
OD>101.6, WT>4.6 |
+28/-0 |
||
Cold Drawn
|
Outside Diameter, mm |
Tolerance, % |
|
OD≤38.1 |
+20/-0 |
||
OD>38.1 |
+22/-0 |
||
ASTM A530
|
NPS
|
Outside Diameter, inch |
Tolerance, % |
1/8≤OD≤2-1/2 |
+20.0/-12.5 |
||
3≤OD≤18, WT/OD≤5% |
+22.5/-12.5 |
||
3≤OD≤18, WT/OD>5% |
+15.0/-12.5 |
||
OD≥20, WT/OD≤5% |
+22.5/-12.5 |
||
OD≥20, WT/OD>5% |
+15.0/-12.5 |
Length: 5800mm; 6000mm; 6096mm; 11800mm; 12000mm; and so on.
Max length: 16000mm
Keyword: High Pressure Steel Pipe, Boiler Steel Pipe, ASME SA335, P9, ASTM A335 P9
Seamless |
|
||||
P-5 |
P-9 |
P-11 |
P-22 |
P-91 |
|
Tensile Strength, min., psi |
|||||
ksi |
60 |
60 |
60 |
60 |
85 |
MPa |
415 |
415 |
415 |
415 |
585 |
Yield Strength, min., psi |
|||||
ksi |
30 |
30 |
30 |
30 |
60 |
MPa |
205 |
205 |
205 |
205 |
415 |
Alloy Steel P9 Seamless Pipes in Seamless & Welded both are loose or in bundles tightened with Iron Strips. Special packings: Metal or Wooden Cases, Pallets etc. Plastic closes both ends, Hexagonal bundles maximum 2.000 kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and IN in sackcloth with several steel strips, Plastic caps.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested. We can also offer customized packaging for ASTM A335 P9 Pipes as per customer's requirement.
Marking Requirements
Rolled, die stamped, or paint stenciled (manufacturer’s option).

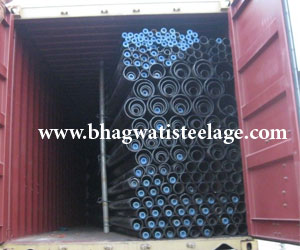

Overseas Packaging
Export packaging is geared towards the protection, handling and transport of Alloy Steel P9 Seamless Pipes by air or sea freight and, as such, shares many characteristics with export and transport packaging. Utmost care must also be taken to make overseas packaging suitable for long periods of storage. It is important for overseas packaging to be designed with ease of handling in mind, so as to ensure ASTM A335 P9 Alloy Steel Pipes is treated with the utmost care at all times.
