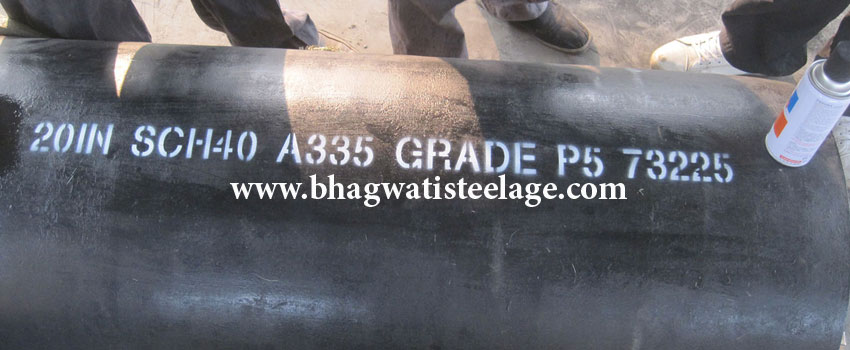

ASTM A335/ASME SA335 P5 Alloy Steel Pipe Suppliers in India, ASTM A335 P5 Suppliers, ASME SA335 P5 Suppliers, ASTM A335 P5 Manufacturers in india, ASME SA335 P5 Manufacturers in india, ASTM A335 grade P5, A335 p5, A335 p5 Pipe, A335 grade p5, A335 p5 Pipe Suppliers, sa335 p5 pipe, ASTM A 335 gr P5, astm a335 p5 pipe suppliers

p5 steel, asme p5 material list, ASTM A335/ASME SA335 P5 Alloy Steel Pipe Suppliers In India, ASME Sa335 Grade P5 Alloy Steel Seamless Pipe, P5 Boiler Pipe/ Tube, ASTM A335 Gr P5, P5 Material, A335 Chrome Moly Alloy Pipe Gr. P5, P5 Seamless Ferritic Alloy-steel Pipe, P5 Heat Exchanger Tubes & P5 Superheater Tubes Suppliers, ASTM A335/ASME SA335 P5 Alloy Steel Seamless Pipe, ASTM A335 P5 Alloy Steel Seamless Pipe, ASME SA335 P5 Alloy Steel Seamless Pipe, ASTM A335/ASME SA335 P5b Boiler Steel Pipe, ASTM A335/ASME SA335 P5c Alloy Steel Pipe

best price guranteed of ASTM A335/ASME SA335 P5 Alloy Steel Pipe manufacturers & save 20% amount,P5 grade seamless pipe, P5 grade alloy steel pipe, Grade P5 welded pipe, P5 alloy steel Grade Material/ P5 alloy grade material pipe, ASTM A335 P5 High Pressure Steel Pipe, P5 Pipe, P5 Boru, A335 Gr. P5, ASTM A335 P5, SA335 P5, IBR approved ASTM A335/ASME SA335 P5 Alloy Steel Pipe

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe Specifications

• Size range: ½” nominal through 60” OD
• Wall Thickness up through 4” thick& heavier upon request
• Alloy Steel Pipes Specifications & Grades:
  • SA-335 P2, P5, P9, P11, P22, P91
  • SA-213 T5, T9, T11, T22, T91
  • A519 4130, 4140/42
  • Rolled & Welded A-691

Material	Size (in mm)	Sch. & Swg.	Specification
ASTM A335 P5 Seamless Pipe	15 NB to 300 NB	Sch. 40s To Sch. XXs (heavier on request)	ASTM A 335, ASME SA 335 Seamless

Alloy Steel Pipe in Grade	ASTM A335 P1/ P2/ P5/ P5b/ P5c/ P9/ P11/ P12/ P15/ P21/ P22/ P23/ P24/ P36/ P91/ P92/ P122/ P911 (with IBR Test Certificate)
In Length of	Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths
Value Added Service	Draw & Expansion as per required Size & Length Heat Treatment, Bending, Annealed, Machining Etc.
Test Certificate	Manufacturer Test Certificate  IBR Test Certificate  Laboratory Test Certificate from Govt. Approved Lab. &  Under Third Party Inspection
ASTM A335 P5 Pipe /ASME SA335 P5 Alloy Steel Pipe Form	Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
ASTM A335 P5 Pipe /ASME SA335 P5 Alloy Steel Pipe End	Plain End, Beveled End, Threaded
ASTM A335 P5 Pipe /ASME SA335 P5 Alloy Steel Pipe Type	Seamless / ERW / Welded / Fabricated / CDW
ASTM A335 P5 Pipe /ASME SA335 P5 Alloy Steel Pipe End Protection	Plastic Caps
ASTM A335 P5 Pipe /ASME SA335 P5 Alloy Steel Pipe Outside Coating	Black Painting, Anti-Corrosion Oil, Galvanised Finish, Finish as per customer Requirements
Inspection, Test Certificate/ Reports	Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports, India Boiler Regulations (IBR) Test Certificate

Frequently used gradewise Alloy Steel Piping Materials:

Material	Pipes	Fittings	Flanges	Valves	Bolts & Nuts
Carbon Steel Alloy High-Temp	A335 Gr P2	A234 Gr WP1	A182 Gr F1	A217 Gr WC1	A193 Gr B7 A194 Gr 2H
	A335 Gr P11	A234 Gr WP11	A182 Gr F11	A217 Gr WC6
	A335 Gr P12	A234 Gr WP12	A182 Gr F12	A217 Gr WC6
	A335 Gr P22	A234 Gr WP22	A182 Gr F22	A217 Gr WC9
	A335 Gr P5	A234 Gr WP5	A182 Gr F5	A217 Gr C5
	A335 Gr P9	A234 Gr WP9	A182 Gr F9	A217 Gr C12

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe Latest Price

• Astm A335 P5 Seamless Alloy Steel Pipe
  US $350-900 / Ton(FOB Price)
• ASTM cold rolled A335 P5 seamless pipe
  US $530.0-910.0 / Metric Ton(FOB Price)
• alloy steel seamless pipe ASTM A335 P5
  US $800-2000 / Ton(FOB Price)
• astm a335 p1 welded steel pipe
  US $400-600 / Metric Ton (FOB Price)
• astm a335 p1 alloy steel pipe
  US $600-800 / Ton (FOB Price)
• ASTM A335 P5 16Mo cold drawn seamless steel pipe
  US $580.0-650.0 / Tons(FOB Price)
• ASTM A335 P5 Alloy Steel Seamless Pipe
  US $1-100 / Ton (FOB Price)
• ASTM A335 P5 Seamless Alloy Steel Pipe
  US $350-400 / Ton (FOB Price)
• seamless boiler pipe astm A335 P5 pipe
  US $400-500 / Ton(FOB Price)
• ASTM cold rolled A335 P5 seamless pipe
  US $530.0-910.0 / Metric Ton(FOB Price)

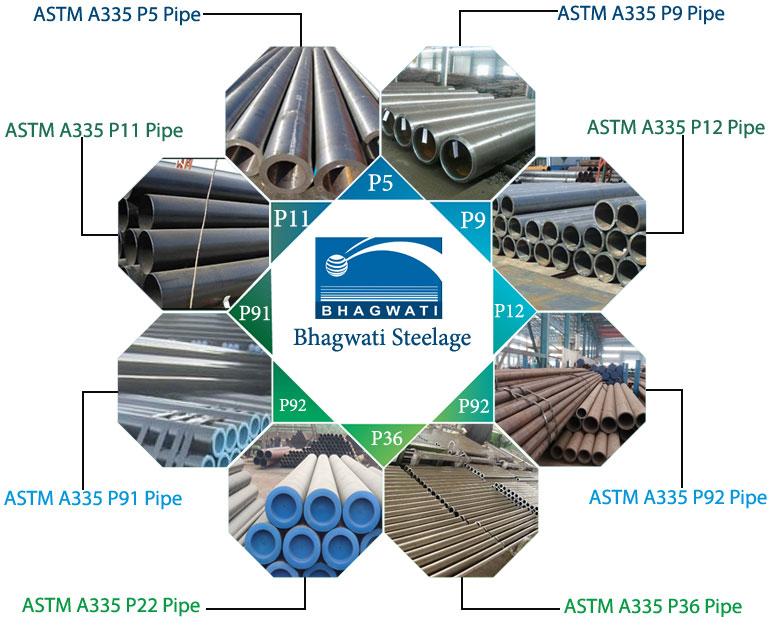

best price guranteed of Alloy Steel Pipe

ASTM A335 P1 Pipe	ASTM A335 P2 Pipe	ASTM A335 P5 Pipe	ASTM A335 P9 Pipe
ASTM A335 P11 Pipe	ASTM A335 P12 Pipe	ASTM A335 P15 Pipe	ASTM A335 P21 Pipe
ASTM A335 P22 Pipe	ASTM A335 P23 Pipe	ASTM A335 P24 Pipe	ASTM A335 P36 Pipe
ASTM A335 P91 Pipe	ASTM A335 P92 Pipe	ASTM A335 P122 Pipe	ASTM A335 P911 Pipe

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe Types

ASTM A335 P5 Alloy Steel seamless Pipe

The material P5 Pipe is especially suited for steam boiler, boiler parts, boiler drum, pressure vessel for the apparatus engineering and similar purposes. It can be used in permanent operation with wall temperatures up to about 590 °C ‘1094 °F+.



ASME SA335 Chrome Moly Pipe Grade P5

Steelpipes Online is a premier worldwide supplier for all your Chrome Moly Alloy A335 P5/ SA335 P5 Seamless Piping needs. These ASTM S/A 335 Chrome Moly Grade P5 Pipes may be furnished bare or coated and with capped ends.





ASTM A335 P5 High Pressure Steel Pipe

We are stockholder & suppliers of High pressure P5 Seamless pipes, mostly used in Power Plants. The products are supplied with 3.1 test certificates, according to EN 10204. Certification according to 3.2 can be agreed at the time of order.







ASTM A335 P5 Boiler Pipe

Supplying P5 Boiler Pipe & Seamless hot finished tubes and pipes for utility boilers, industrial boilers and heat recovery steam generators. The P5 tubes and pipes are supplied in random lengths or in fixed lengths to be analysed and agreed at time of order, in the range between 4,000 mm and 26,000 mm depending on the size.

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe size & stock range

Pipe/ Tube Type	NB Sizes	Sch 5	Sch 10	Sch 40	Sch 80	Sch 160
ASTM A335 P5 Pipe	1/2
ASTM A335 P5 Pipe	3/4
ASTM A335 P5 Pipe	1
ASTM A335 P5 Pipe	1.25
ASTM A335 P5 Pipe	1.5
ASTM A335 P5 Pipe	2
ASTM A335 P5 Pipe	2.5
ASTM A335 P5 Pipe	3
ASTM A335 P5 Pipe	3.5
ASTM A335 P5 Pipe	4
ASTM A335 P5 Pipe	5
ASTM A335 P5 Pipe	6
ASTM A335 P5 Pipe	8
ASTM A335 P5 Pipe	10
ASTM A335 P5 Pipe	12
ASTM A335 P5 Pipe	14
ASTM A335 P5 Pipe	16
ASTM A335 P5 Pipe	18
ASTM A335 P5 Pipe	20
ASTM A335 P5 Pipe	22
ASTM A335 P5 Pipe	24

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe Chemical Composition

Grade	C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
P5	0.05-0.15	0.30-0.60	0.025 max	0.025 max	0.50-1.00	1.00-1.50	0.44-0.65

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe Mechanical Properties

Grade	Tensile Strength, MPa	Yield Strength, MPa	Elongation, %
P5	415 min	205 min	30 min

ASTM A335 P5 Pipe / ASME SA335 P5 Pipe Tolerance

Outside Diameter	OD Tolerance	WT Tolerance	Ovality Tolerance	Cut Length Tolerance
OD≤ 12, 7 mm	± 0, 13 mm	± 15 %	–	+ 3, 18 mm, – 0 mm
12, 7 mm  < OD ≤ 38, 1 mm	± 0, 13 mm	± 10 %	max, 1, 65 mm	+ 3, 18 mm, – 0 mm
38, 1 mm  < OD ≤ 88, 9 mm	± 0, 25 mm	± 10 %	max, 2, 41 mm	+ 4, 76 mm, – 0 mm

ASTM A335 P5 Pipe / ASME SA335 P5 Pipe Standard Specification Tubes

Trade Name	Grade	UNS #	Pipe	Forged / Bored Pipe *
1 1/4 Chrome	P11	K11597	A335 / SA335	A369 / SA369
2 1/4 Chrome	P22	K21590	A335 / SA335	A369 / SA369
5 Chrome	P5	K41545	A335 / SA335	A369 / SA369
9 Chrome	P9	S50400	A335 / SA335	A369 / SA369
P91	P91	K91560	A335 / SA335	A369 / SA369
P92	P92	K92460	A335 / SA335	A369 / SA369

Check Our Heavy Sale Products of ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Seamless Pipes, sa335 P9 Pipe at most attractive price offer

Other types of ASTM A335 P5 Pipe /ASME SA335 P5 Alloy Steel Seamless Pipe
ASME SA213 Grade T11 SA335 Grade P9 Alloy Steel Pipes & Tubes Seamless ASTM A335 P5 Pipe ASTM A691 Welded Pipe erw ASTM A335 P5 pipe Fabricated ASTM A335 P5 Pipe CDW ASTM A335 P5 Pipe ASTM A335 P5 SMLS ASTM A335 P5 Round Pipes/ Tubes ASTM A335 P5 Alloy Steel Seamless Pipe ASTM A335 P5 High Temperature Pipes P5 Seamless hot finished tubes and pipes boilers ASTM A335 P5 Cold Drawn Seamless Pipe ASTM A691 P5 Welded & Drawn over Mandrel (DOM) Pipe ASTM A335 P5 Stress Relief Annealed Pipe ASTM A335 P5 alloy pipe ASTM A335 P5 Boiler Pipe ASTM A335 Grade P22 Alloy Steel Pipe ASME SA335 Grade P5 ASTM A335 P11 ASTM A335 P12 ASTM A335 Grade P91 NACE	SCH XS ASTM A335 P5 ASTM A335 P5 with Mill test certificate ASTM A335 P5 with Varnish ASTM A335 P5 with Black Paint Chrome Moly Alloy Pipe ASTM A335 P5 ASTM A335 P5 alloy grade material pipe ASTM A335 P5 Ferritic Alloy-Steel Pipe IBR approved ASTM A335 P5 SCH STD ASTM A335 P5 SCH 20 ASTM A335 P5 ASTM A335 P5 Alloy Steel Boiler Pipe ASTM A369 FP22 Forged Pipe P5 Seamless tubes and pipes for Power Plants P5 Cold drawn seamless tubes for heat exchangers and boilers ASTM A335 P5 HREW Alloy Steel Tubing ASTM A335 P5 cold drawn round alloy steel tube ASTM A335 Gr. P5 casing pipe ASTM A335 P5 Heat Exchanger Pipe ASME SA335 Grade P5 SCH 40 ASTM A335 P5 SCH 80 ASTM A335 P5 SCH 120 ASTM A335 P5 SCH 160 ASTM A335 P5 SCH XXS ASTM A335 P5	Japanese Mills ASTM A335 P5 Korean Mills ASTM A335 P5 US Mills ASTM A335 P5 European Mills ASTM A335 P5 Ukraine Mills ASTM A335 P5 Russian Mills ASTM A335 P5 ASTM A335 P5 Square Pipes/ Tube ASTM A335 P5 Rectangular Pipe/ Tube ASTM A335 P5 U Bend ASTM A335 chrome moly pipe P5 ASTM A691 P5 Welded Pipe/ EFW Pipe ASTM A691 P5 Welded Mechanical Alloy Steel Tube ASTM A691 P5 Welded Round Hot Rolled Electric Weld ASTM A335 P5 Seamless Mechanical Steel Tube ASTM A335 P5 High Pressure Steel Pipe ASTM A335 P5 seamless pipe ASTM A335 P5 steel pipe ASTM A335 P5 for Power Plant ASTM A335 P5 for Oil & Gas ASTM A335 P5 for Industrial Boilers ASTM A335 P5 for Nuclear Plants anti-corrosion oil and galvanised finish ASTM A335 P5 Indian Mills ASTM A335 P5

Alloy Steel Boiler and Heat Exchanger Pipes - ASTM A335 P5 Pipe, ASME SA335 P5 Pipe

ASPM	ASME	JIS G 3462	BS	DIN	ISO	ABS	NK	LRS	DNV
A209 P1	SA 209 P1	SPBA 12	3606 243	17175 15Mo3	2604 II PS26	ABS K	KSPB 12		Sec 4-E-PS380
A250 P1	SA250 P1		3606 245	17177 15Mo3	2604 III PS26
A209 P1a	SA 209 P1a	SPBA 13				ABS L
A250 P1a	SA250 P1a
A335 P2	SA335 P2	SPBA 20		17175 14MoV83	2604 II PS33				Sec 4-E-PS440
A250 P2	SA250 P2
A335 P12	SA 209 P12	SPBA 22	3606 620	17175 13CrMo44	2604 II PS32	ABS O	KSPB 22	Sec 6 1Cr 1/2Mo-440	Sec 4-E-PS410-3
A250 P12	SA250 P12				2604 III PS32
A335 P11	SA199 P11	SPBA 23	3606 621			ABS N	KSPB 23		Sec 4-E-PS410-4
	SA 209 P11
A335 P22	SA199 P22	SPBA 24	3606 622	17175 10CrMo910	2604 II PS34	ABS P	KSPB 24	Sec 6 2-1/2Cr 1Mo-410	Sec 4-E-PS450-2
	SA335 P22
A335 P5	SA199 P5	SPBA 25	3606 625		2604 II S37				Sec 4-E-PS430
	SA335 P5
A335 P9	SA199 P9	SPBA 26	3059-P2 622-490		2604 II S38				Sec 4-E-PS500
	SA335 P9
A209 P1b	SA 209 P1b		3059-P2 243	17175 17Mn4	2604 II S39	ABS M		Sec 6 2-1/2Cr 1Mo-490	Sec 4-E-PS450-1
			3059-P2 620-460			(=A209- P1b)
A250 P1b	SA250 P1b		3059-P2 629-470	17175 14MoV63	2604 II S40				Sec 4-E-PS460-2
A250 P11	SA250 P11		3059-P2 629-590	17175  X20CrMoV12 1					Sec 4-E-PS590
A250 P22	SA250 P22		3059-P2 762						Sec 4-E-PS610
A335 P5b	SA335 P5b		3059-P2 304S51						Sec 4-E-PS690
A335 P5c	SA335 P5c		3059-P2 306S51
A335 P17	SA 209 P17		3059-P2 316S52
A335 P21	SA335 P21		3059-P2 316S51
A335 P23	SA335 P23		3059-P2 321S51
A335 P91	SA335 P91		3059-P2 347S51
A335 P92	SA335 P92		3059-P2 215S15

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe, SA335 P5 Pipe Useful Information

Tubular Products

Alloy Steel Seamless Pipes & Tubes ASTM A335 Gr P22, Alloy pipe a335 p11, ASTM A335 Gr P5, ASTM A335 Gr P9, ASTM A335 Gr P12 & ASTM A335 Gr P91, ASTM A335 P5 ASTM A519 Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing 4130 DIN 17175 Seamless Tubes of Heat-resistant Steels 15Mo3; 13CrMo44; 10CrMo910 EN 10216-2 Seamless steel tubes for pressure purposes Part 2: Non-alloy and alloy steel tubes with specified elevated temperature properties 16Mo3; 13CrMo4-5; 10CrMo9-10; 11CrMo9-10; X10CrMoVNb9-1 GOST 8732-78 Seamless Hot-worked Steel Pipes 20Ch; 40Ch; 15ChM; 30ChMA GOST 8734-75 Seamless cold-formed steel pipes 20Ch; 40Ch; 15ChM GOST 550-75 Seamless steel tubes for petroleum processing and the petrochemical industry 12ChM; 15Ch5M TU 14-3R-55-2001 Seamless steel pipes for steam boilers and pipelines 12Ch1MF; 12Ch1MF-PV; 15ChM TU 14-3-460-2003 Seamless steel tubes for boilers and pipelines 12Ch1MF; 12Ch1MF-PV; 15ChM GOST 9567-75 Precision steel pipes 20Ch; 15ChM Main material grades:  DIN standard carbon & alloy steel tubes St37.0/st52.0/DIN 2391/st35.8/TT St 35N/15Mo3/13CrMo44, 10 CrMo910/X20 CrMoV 12 1/X10 CrMo VNb 9 1/15 Ni CuMoNb 5 EN Standard (EN10216-2)  P235GH TC1 &TC2/16Mo3/13CrMo4-5/10CrMo9-10/X20 CrMoV11-1 , X10 CrMoVNb9-1

ASME SA335 P5 Pipe / ASTM A335 P5 Pipe Features

The benefits of alloy steel pipe include its tensile strength, yield strength, fatigue resistance, toughness, and wear resistance. As suppliers of ASME SA335 P5 Pipe / ASTM A335 P5 Pipe, Steelpipes Online specializes in ‘chrome moly’ SA335 piping in grades P5, P9, P11, P22, and P91. Chrome moly power piping is used extensively in power plants throughout the world.  In addition to SA335, other specifications we offer include ASTM A519 and rolled and welded pipe in A-691. Alloy piping products are available in outer diameters through 60” (OD) and up to 4” wall thickness.

Definition of the order

Ordering Information
– Norms and specifications
– Steel grade and heat treatment
– Sizes, minimum or average wall thickness
– ASTM A335 Gr. P5 Pipe Lengths
– Quantity
– Surface finishing
– Inspection

ASTM A335 Gr. P5 Pipe Options:
a) Fixed or multiple lengths
b) Special tolerances
c) Special tests
d) Surface protection
e) Special marking
f) Colour coding
g) Special packing

Reference standards

EN – ASTM/ASME – DIN -NF A – BS -UNI – ISO – GB 5310 – GOST – JIS

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe Available Surface Finish

Surface Finishes: Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.
End Finishes: Beveled, Square Cut, Threaded & Coupled.

Our Specialization in ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe

Looking for ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe specialized Manufacturers in India?

Steelpipes Online  is India’s leading suppliers & exporters of Alloy Steel Pipes & Tubes. ANSI B 36.10, Alloy Steel GR. P22 Seamless Round, Square, Rectangular, Hydraulic Pipes Suppliers in India. We have specialization in ASTM A335 Gr P5 Seamless Tubes and Pipes for Power Plants | ASTM A335 Gr P5 Seamless hot finished tubes and pipes for utility boilers, industrial boilers and heat recovery steam generators | ASTM A335 Gr P5 Cold drawn seamless tubes for heat exchangers and boilers

We have supplied ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe to 280+ companies from Oil & Gas Industry, Petrochemical, Offshore & Onshore Projects, Rigs, Chemical & Fertilizer companies in more than 80 countries.

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe Outside Diameter & Tolerance

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe	Hot rolled	Outside Diameter, mm	Tolerance, mm
		OD≤101.6	+0.4/-0.8
		101.6＜OD≤190.5	+0.4/-1.2
		190.5＜OD≤228.6	+0.4/-1.6
	Cold Drawn	Outside Diameter, mm	Tolerance, mm
		OD＜25.4	±0.10
		25.4≤OD≤38.1	±0.15
		38.1＜OD＜50.8	±0.20
		50.8≤OD＜63.5	±0.25
		63.5≤OD＜76.2	±0.30
		76.2≤OD≤101.6	±0.38
		101.6＜OD≤190.5	+0.38/-0.64
		190.5＜OD≤228.6	+0.38/-1.14
ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe	NPS	Outside Diameter, inch	Tolerance, mm
		1/8≤OD≤1-1/2	±0.40
		1-1/2＜OD≤4	±0.79
		4＜OD≤8	+1.59/-0.79
		8＜OD≤12	+2.38/-0.79
		OD>12	±1%

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe Wall thickness & Tolerance

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe	Hot rolled	Outside Diameter, mm	Tolerance, %
		OD≤101.6, WT≤2.4	+40/-0
		OD≤101.6, 2.4＜WT≤3.8	+35/-0
		OD≤101.6, 3.8＜WT≤4.6	+33/-0
		OD≤101.6, WT>4.6	+28/-0
		OD>101.6, 2.4＜WT≤3.8	+35/-0
		OD>101.6, 3.8＜WT≤4.6	+33/-0
		OD>101.6, WT>4.6	+28/-0
	Cold Drawn	Outside Diameter, mm	Tolerance, %
		OD≤38.1	+20/-0
		OD>38.1	+22/-0
ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe	NPS	Outside Diameter, inch	Tolerance, %
		1/8≤OD≤2-1/2	+20.0/-12.5
		3≤OD≤18, WT/OD≤5%	+22.5/-12.5
		3≤OD≤18, WT/OD>5%	+15.0/-12.5
		OD≥20, WT/OD≤5%	+22.5/-12.5
		OD≥20, WT/OD>5%	+15.0/-12.5

Length: 5800mm; 6000mm; 6096mm; 11800mm; 12000mm; and so on.
Max length: 16000mm

Keyword: High Pressure Steel Pipe, Boiler Steel Pipe, ASME SA335, P1, ASTM A335

ASTM ASME (S)A-335/(S)A-335M Grade and chemical composition

Grade	UNS	C≤	Mn	P≤	S≤	Si≤	Cr	Mo
P1	K11522	0.10~0.20	0.30~0.80	0.025	0.025	0.10~0.50	–	0.44~0.65
P2	K11547	0.10~0.20	0.30~0.61	0.025	0.025	0.10~0.30	0.50~0.81	0.44~0.65
P5	K41545	0.15	0.30~0.60	0.025	0.025	0.50	4.00~6.00	0.44~0.65
P5b	K51545	0.15	0.30~0.60	0.025	0.025	1.00~2.00	4.00~6.00	0.44~0.65
P5c	K41245	0.12	0.30~0.60	0.025	0.025	0.50	4.00~6.00	0.44~0.65
P9	S50400	0.15	0.30~0.60	0.025	0.025	0.50~1.00	8.00~10.00	0.44~0.65
P11	K11597	0.05~0.15	0.30~0.61	0.025	0.025	0.50~1.00	1.00~1.50	0.44~0.65
P12	K11562	0.05~0.15	0.30~0.60	0.025	0.025	0.50	0.80~1.25	0.44~0.65
P15	K11578	0.05~0.15	0.30~0.60	0.025	0.025	1.15~1.65	–	0.44~0.65
P21	K31545	0.05~0.15	0.30~0.60	0.025	0.025	0.50	2.65~3.35	0.80~1.60
P22	K21590	0.05~0.15	0.30~0.60	0.025	0.025	0.50	1.90~2.60	0.87~1.13
P91	K91560	0.08~0.12	0.30~0.60	0.020	0.010	0.20~0.50	8.00~9.50	0.85~1.05
P92	K92460	0.07~0.13	0.30~0.60	0.020	0.010	0.50	8.50~9.50	0.30~0.60

Note: (S)A335 P1 other chemical composition are : V 0.18~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.06~0.10

(S)A335 P1 other chemical composition are : V 0.15~0.25; N 0.030~0.070; Ni ≤ 0.40; Al ≤ 0.04 ; Nb 0.04~0.09; W 1.5~2.00 ; B 0.001~0.006

Application & End User of ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Pipe

• ASME SA335 P5 Pipe for Manufacturing Boilers
• ASME SA335 P5 Pipe for Superheaters
• ASME SA335 P5 Pipe for Heat Exchangers
• ASTM A335 P5 Pipe for power generation, petroleum, and other high temperature services
• ASTM A335 P5 Pipe for power generation, petroleum, and other high temperature services
• ASTM A335 P5 Pipe for petroleum
• ASTM A335 P5 Pipe for petroleum
• ASTM A335 P5 Pipe for power generation
• ASTM A335 P5 Pipe for power generation
• ASTM A335 P5 Pipe for boiler replacement and repair

Steel Pipe/ Tube Harmonized System Codes (HS Code)

730441  Tubes, Pipes and Hollow Profiles, of stainless steel , Cold-drawn or cold-rolled (cold reduced)
730449  Other Tubes, Pipes and Hollow Profiles, of Stainless Steel, Seamless
730451  Tubes, Pipes and Hollow Profiles, of Other Alloy Steel, Cold-drawn or cold-rolled (cold reduced)
730459  Other Tubes, Pipes and Hollow Profiles, of Other Alloy Steel,
730410  Line pipe of a kind used for oil or gas pipelines: Of iron or nonalloy steel:
730420  Casing, tubing and drill pipe, of a kind used in drilling for oil or gas: Casing:
730431  Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel, Cold-drawn or cold-rolled (cold-reduced)
730439  Other Tubes, Pipes and Hollow Profiles, of Iron or Non-alloy Steel
730490  Other Tubes, Pipes and Hollow Profiles, Seamless, of Iron or Steel

ASTM A335 P5 Pipe / ASME SA335 P5 Alloy Steel Seamless Pipe Packaging & Shipping

ASTM A335 P5 Pipe in Seamless & Welded both are loose or in bundles tightened with Iron Strips. Special packings: Metal or Wooden Cases, Pallets etc. Plastic closes both ends, Hexagonal bundles maximum 2.000 kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and IN in sackcloth with several steel strips, Plastic caps.

Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested. We can also offer customized packaging for ASME SA335 P5 Pipe as per customer's requirement.

Marking Requirements
Rolled, die stamped, or paint stenciled (manufacturer’s option).

• Manufacturer’s name, brand, or trademark
• ASME SA335 P5
• ANSI schedule number or weight class or wall thickness
• Additional “S” if tested supplementary requirements
• Hydrostatic test pressure and/or NDE, or NH if neither is specified
• Size, length, weight per foot (NPS 4 and larger)

Overseas Packaging

Export packaging is geared towards the protection, handling and transport of ASME SA335 P5 Pipe by air or sea freight and, as such, shares many characteristics with export and transport packaging. Utmost care must also be taken to make overseas packaging suitable for long periods of storage. It is important for overseas packaging to be designed with ease of handling in mind, so as to ensure A335 P5 Pipe is treated with the utmost care at all times.

Brands we Stock & Supply of ASTM A335 P5 Pipes / ASME SA335 P5 Pipe

Authorised Dealer & distributor of
United Seamless Limited -usl ASTM A335 P5 Pipe	Bao Steel- Bao ASTM A335 P5 Pipe	Yangzhou Lontrin Steel Tube -lontrin ASTM A335 P5 Pipe	Sumitomo Metals Smtm ASTM A335 P5 Pipe	Tenaris -tnrs ASTM A335 P5 Pipe
Valourec & Mannesman -v&m ASTM A335 P5 Pipe	Wuxi ASTM A335 P5 Pipe	Maharastra Seamless Limited -msl ASTM A335 P5 Pipe	Indian Seamless Metal Tubes Limited _ismt ASTM A335 P5 Pipe	Jindal Saw Ltd -jsl ASTM A335 P5 Pipe

We are approved vendor & Suppliers of ASTM A335 P5 Pipe / ASME SA335 P5 Pipe in GASCO, KNPC, SAUDI ARAMCO, SABIC, ORPIC, NIORDC, PIDMCO etc.

Vendor & Suppliers of
GASCO	KNPC	SAUDI ARAMCO	SABIC	ORPIC	PIDMCO

ASTM A335 P5 /ASME SA335 P5 Alloy Steel Pipe Manufacturers in India, ANSI B 36.10 Alloy Steel GR. P5 Seamless Round, Square, Rectangular, Hydraulic Pipes supplier, ASTM A335/ASME SA335 P5 Alloy Steel Pipe distributors in India, prime quality ASTM A335 P5 Pipe /ASME SA335 P5 Alloy Steel Pipe, Source for ASTM A335/ASME SA335 P5 Alloy Steel Pipe, specialize in ASTM A335/ASME SA335 P5 Alloy Steel Pipe, ASTM A335/ASME SA335 P5 Alloy Steel Pipe with Mill & Test Certificate, wide range of ASTM A335 P5 Pipe /ASME SA335 P5 Alloy Steel Pipe, ASTM A335/ASME SA335 P5 Alloy Steel Pipe Suppliers in India, ASTM A335 P5 Pipe Wholesalers, ASTM A335 P5 Pipe Dealers, ASTM A335 P5 Pipe Stockists, ASTM A335 P5 Pipe Exporters in India, ASTM A335 P5 Pipe Importers, ASTM A335 P5 Pipe Retailers, ASTM A335 P5 High Pressure Steel Pipe suppliers in India, ASTM A335 P5 / ASME SA335 P5 Alloy Steel Pipe distributors, stockholders and suppliers in Iran, Singapore, Malaysia, Saudi Arabia, Indonesia
